55mm vs 77mm Roller Door Slats: Which Do You Need?

Ask for a roller garage door quote and one of the first things we need to confirm is the slat profile. Most homeowners have never heard of either option before the survey, yet the choice between 55mm and 77mm shapes almost everything about the finished door: how wide it can span, how it copes with wind, how much insulation sits in the curtain, how big the box above the opening is and, of course, what it costs. The good news is that for most garages the decision is straightforward once you know what each profile is for.

What Is a Slat Profile?

A roller garage door curtain is made of horizontal aluminium slats that interlock along their length. The profile is the height of each individual slat as it sits in the curtain. On a 55mm door each slat is 55mm tall; on a 77mm door each slat is 77mm tall and noticeably thicker through its body.

That one measurement drives four practical things: the maximum opening width the curtain can span without flexing, the amount of insulating foam inside each slat, the size of the coil the curtain forms when it rolls up, and the price. The two profiles are not a good, better, best ladder. They are two tools for two different jobs, which is why we match the profile to the garage rather than asking you to pick from a menu.

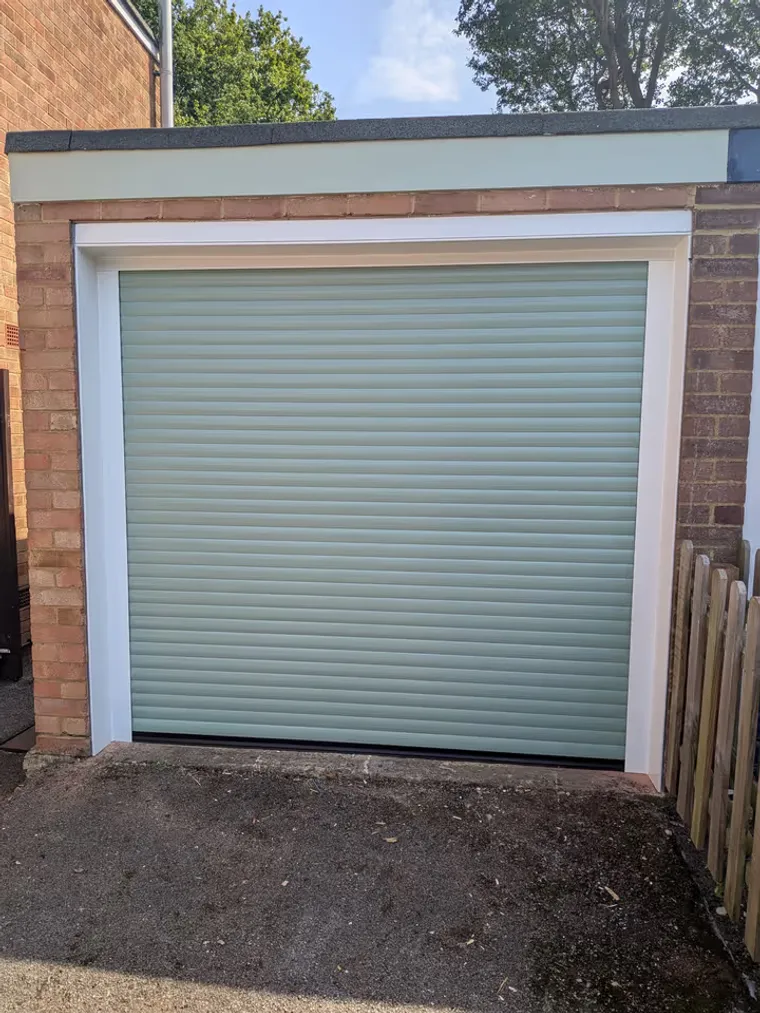

The 55mm Profile: Made for Single Garages

The 55mm profile uses aluminium slats filled with a 12.5mm core of high-density foam. It is designed for openings up to 2.6 metres wide, which comfortably covers the standard single garage. Because the slats are slimmer, the curtain coils tightly and the roll-up box above the opening stays compact, so the door looks neat on a smaller frontage and takes up very little of the space inside the garage.

On a typical single garage the 55mm profile gives you everything the larger profile does at that width: an insulated curtain, an electric motor with two remote controls, a safety edge, automatic locking and a manual override for power cuts. There is no benefit in paying for heavier slats on an opening this size.

The 77mm Profile: Built for Wider Openings

The 77mm profile uses thicker 18mm insulated slats and spans openings up to 5 metres wide. That extra depth stiffens the curtain across its width, which matters on double garages where a slimmer slat would flex. It also gives the door better wind resistance, so it is the profile we recommend for exposed positions: open plots, doors that face the prevailing weather and homes near the coast.

The thicker slats carry more insulation too. If the garage is attached to the house, used as a workshop or sits under a bedroom, that extra material across a large opening helps with both heat loss and noise.

55mm vs 77mm at a Glance

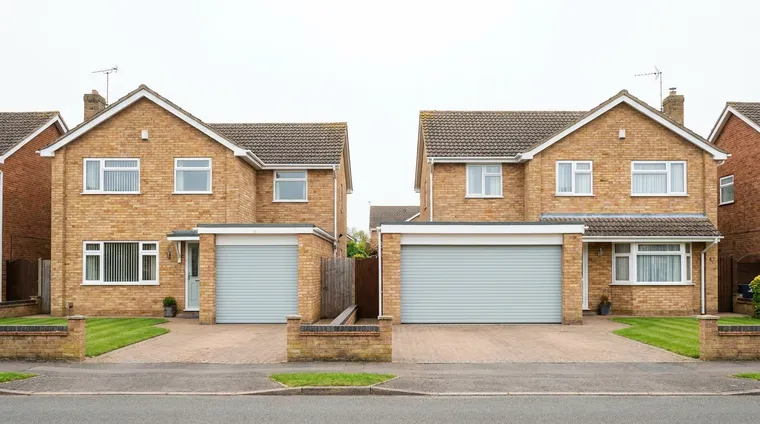

How Your Opening Width Decides It

In most cases the tape measure makes the decision for you. If the structural opening is wider than 2.6 metres, the 55mm profile is out of its rated range and the 77mm profile is the correct choice. If the opening is under 2.6 metres, the 55mm profile is normally the sensible pick: it costs less, the box is smaller and the door performs exactly as it should at that width.

There are exceptions at the margins. A single garage in a very exposed spot can justify the 77mm profile for its wind resistance, and some homeowners with generous headroom simply prefer the chunkier slat line. We see the full mix across the county, from standard single garages suited to the 55mm profile to wider and more exposed plots that need the 77mm; our page on roller garage doors in Braintree covers how the survey works locally.

Box Size: The Difference You Live With

When a roller door opens, the curtain coils around a barrel inside a box above the opening. Slimmer 55mm slats form a tighter coil, so the box is compact. The thicker 77mm slats form a larger coil, so the box is bigger and needs more room above and behind the lintel.

On most garages this is no problem at all, and the box can usually be fitted inside or outside the opening to suit the structure. But if your garage has limited headroom, the box size can influence which profile and fitting position work best, which is one more reason the survey measures the space above the opening carefully rather than assuming.

What the Choice Means for Price

Typical UK installed prices for our made-to-measure electric roller doors run from £1,275 to £4,000 depending on size, slat profile and features. A 55mm door on a single garage sits at the lower end. A 77mm door costs more because there is more of everything: thicker slats, more aluminium, more insulation, a larger box and usually a much wider curtain.

For a quick idea of where your garage lands, the garage door cost calculator gives you an instant estimate from your measurements and colour choices. The figure that actually matters, though, is the fixed written quote that follows the survey, because it is based on the real opening rather than an approximation.

How the Survey Confirms the Right Profile

Every door we supply is made to measure, so the free on-site survey does the deciding work. We measure the structural opening width and height, check the space above and beside the opening for the box and guide runners, look at the fixing points, confirm there is a standard 13-amp socket for the motor and consider how exposed the door will be. From that, we confirm the profile, talk through colours and finishes and leave you with a fixed written quote with no obligation.

The right profile is only one part of a good result. You can read about the rest of the process, from manufacture through to safety checks and handover, on our roller garage door installation page. Most installations are completed in a single visit, typically within half a day, whichever profile your garage needs.
